General Specification
♦ Material:
Frame And Impeller:Thermal Plastic UL 94V-0
♦ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| 型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |

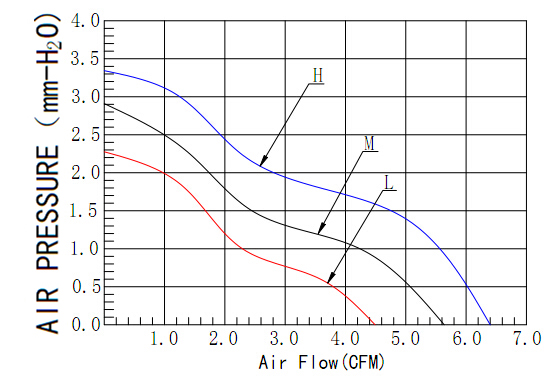

风量 Air Flow |
风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
| ADH4010S | Sleeve | 5 | 4.5～5.5 | 0.24 | 6000 | 6.40 | 3.31 | 26.26 | 17 |
| ADM4010S | 0.18 | 5400 | 5.62 | 2.91 | 24.87 | ||||
| ADL4010S | 0.12 | 4200 | 4.48 | 2.32 | 21.13 | ||||
| ADH4010B | Ball | 0.24 | 6000 | 6.40 | 3.31 | 26.26 | |||
| ADM4010B | 0.18 | 5400 | 5.62 | 2.91 | 24.87 | ||||
| ADL4010B | 0.12 | 4200 | 4.48 | 2.32 | 21.13 | ||||
| ADH4010S | Sleeve | 12 | 10.8～13.2 | 0.10 | 6000 | 6.40 | 3.31 | 26.26 | |
| ADM4010S | 0.08 | 5400 | 5.62 | 2.91 | 24.87 | ||||
| ADL4010S | 0.06 | 4200 | 4.48 | 2.32 | 21.13 | ||||
| ADH4010B | Ball | 0.10 | 6000 | 6.40 | 3.31 | 26.26 | |||
| ADM4010B | 0.08 | 5400 | 5.62 | 2.91 | 24.87 | ||||
| ADL4010B | 0.06 | 4200 | 4.48 | 2.32 | 21.13 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
